EcoFlow Stream Ultra + AC Pro — The Parallel Battery Imbalance Nobody Warns You About

My Setup

#

I purchased the AC Pro to expand my system from 1.92 kWh to 3.84 kWh, based on EcoFlow’s product page claims:

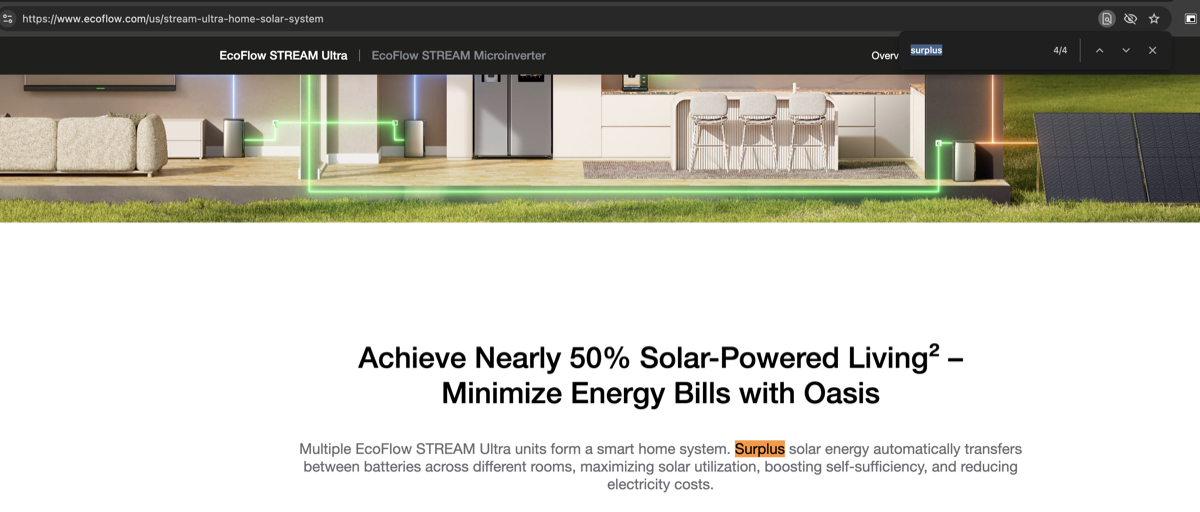

“Surplus solar energy automatically transfers between batteries across different rooms, maximizing solar utilization, boosting self-sufficiency, and reducing electricity costs.”

“AI-driven load balancing automatically redirects energy from nearby units — keeping your fridge running on solar without interruption.”

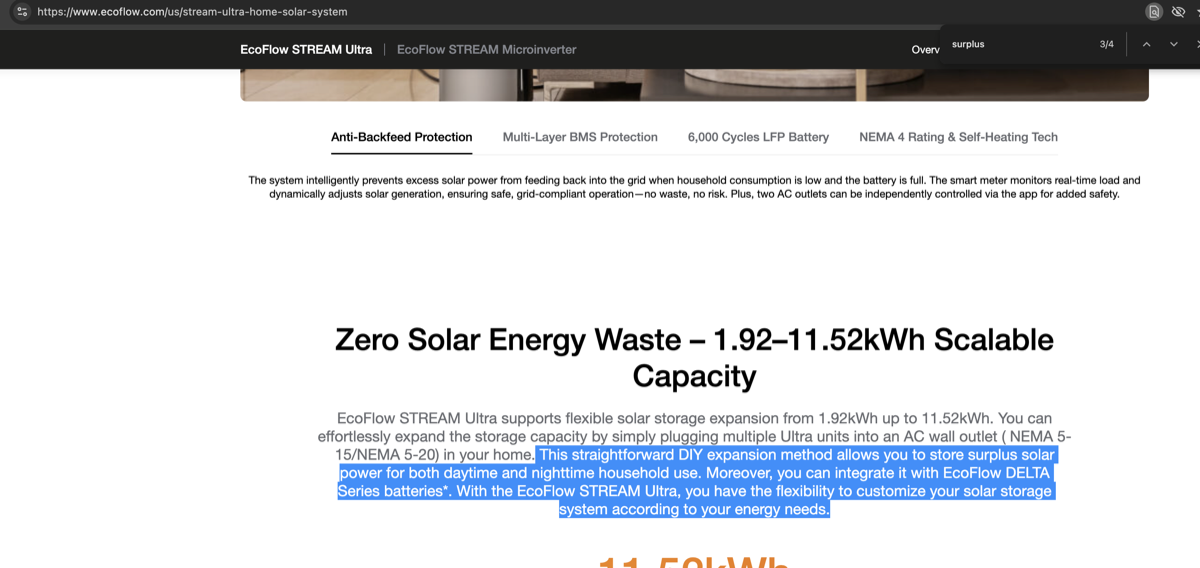

“Zero Solar Energy Waste — This straightforward DIY expansion method allows you to store surplus solar power for both daytime and nighttime household use.”

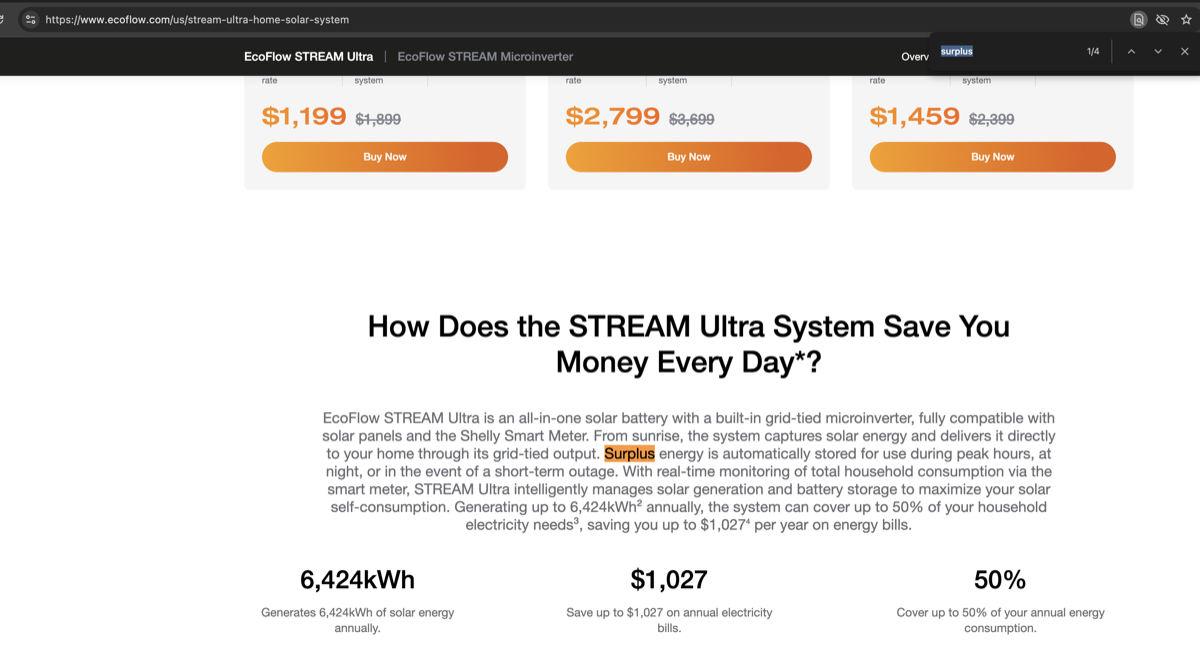

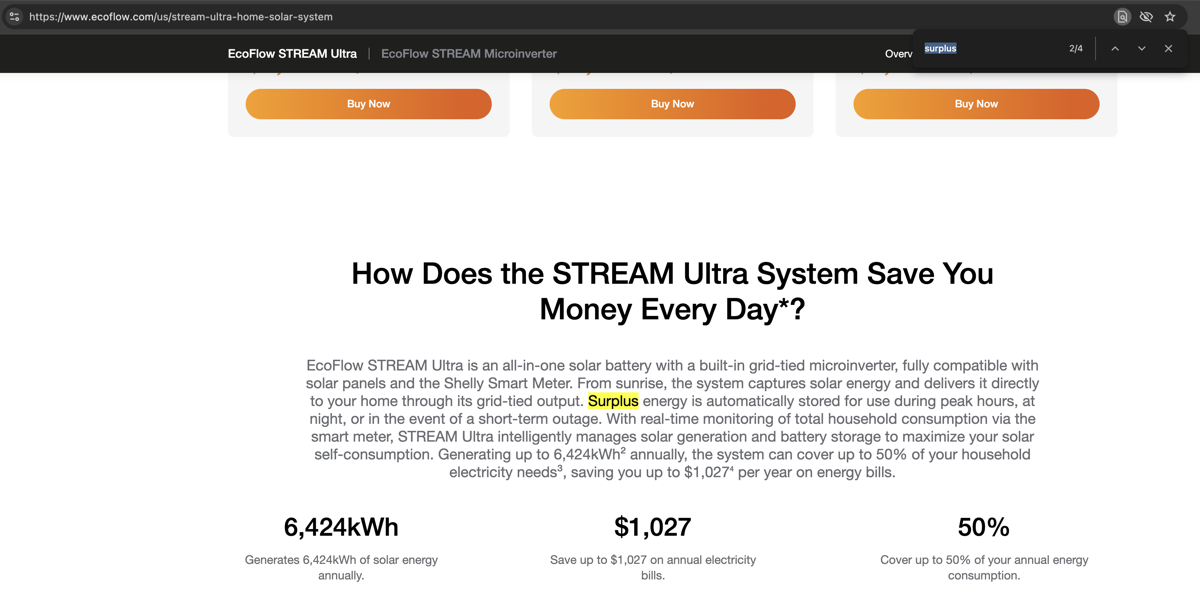

Here are the actual screenshots from EcoFlow’s product page (captured April 4, 2026):

Source: ecoflow.com/us/stream-ultra-home-solar-system — accessed April 4, 2026

After weeks of data collection, I’ve found that none of this holds up under any sustained household load. And it’s not a firmware bug — it’s a hardware architecture problem.

The Architecture: A 1200W Straw for 2000W of Solar

#

The AC Pro has no solar inputs and no DC connection to the Ultra. It charges exclusively through the AC parallel cable. The only path for solar energy to reach it is the Ultra’s 1200W inverter.

flowchart LR
    PV["☀️ Solar Panels\n2000W DC"] --> DC["Ultra DC Bus"]
    DC --> BAT["🔋 Ultra Battery\n1.92 kWh\nDC direct ~99%"]
    DC --> INV["⚡ Inverter\n1200W MAX"]
    INV --> AC["AC Circuit\n230V"]
    AC --> LOAD["🏠 House Load\ne.g. 1400W"]
    AC --> ACPRO["🔋 AC Pro\n1.92 kWh\nAC coupled"]

    style PV fill:#ca8a04,stroke:#eab308,color:#fff
    style BAT fill:#166534,stroke:#22c55e,color:#fff
    style INV fill:#991b1b,stroke:#ef4444,color:#fff
    style ACPRO fill:#1e3a5f,stroke:#3b82f6,color:#fff
    style LOAD fill:#6b7280,stroke:#9ca3af,color:#fff
    style DC fill:#374151,stroke:#6b7280,color:#fff
    style AC fill:#374151,stroke:#6b7280,color:#fff

When my EV charger draws 1400W, the inverter is fully consumed serving the load (1200W max, grid covers the 400W deficit). The remaining 800W of solar is trapped on the Ultra’s DC bus with nowhere to go except the Ultra’s battery. The AC Pro receives 0W.

flowchart LR
    PV["☀️ 2000W"] --> DC["DC Bus"]
    DC -->|"800W trapped"| BAT["🔋 Ultra\n+800W ✅"]
    DC -->|"1200W max"| INV["⚡ Inverter"]
    INV -->|"1200W"| LOAD["🏠 Load 1400W"]
    GRID["🔌 Grid"] -->|"400W deficit"| LOAD
    ACPRO["🔋 AC Pro\n0W ❌"]

    style BAT fill:#166534,stroke:#22c55e,color:#fff
    style INV fill:#991b1b,stroke:#ef4444,color:#fff
    style ACPRO fill:#991b1b,stroke:#ef4444,color:#fff
    style LOAD fill:#6b7280,stroke:#9ca3af,color:#fff
    style PV fill:#ca8a04,stroke:#eab308,color:#fff
    style GRID fill:#374151,stroke:#6b7280,color:#fff
    style DC fill:#374151,stroke:#6b7280,color:#fff

When the Ultra eventually fills to 100%, the MPPT throttles from 2000W to 1200W — cutting 800W of solar permanently. The inverter keeps running to serve the load, but 800Wh per hour of sunshine is wasted while the AC Pro sits partially empty.

This isn’t a firmware decision. It’s physics. 2000W solar - 1200W inverter = 800W trapped on the wrong side of the bottleneck.

The Evidence

#

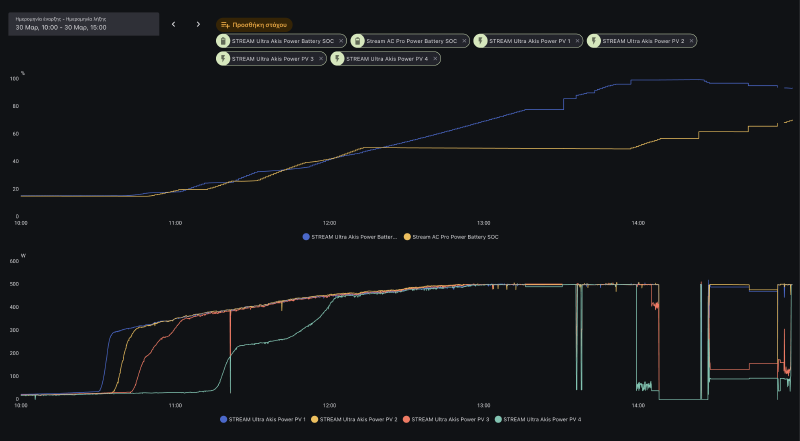

Real data from March 30, 2026. Both batteries started at ~15%. EV surplus charging began at ~11:00.

🔋 Ultra: 99.3%   AC Pro: 56.2%   gap: 43%

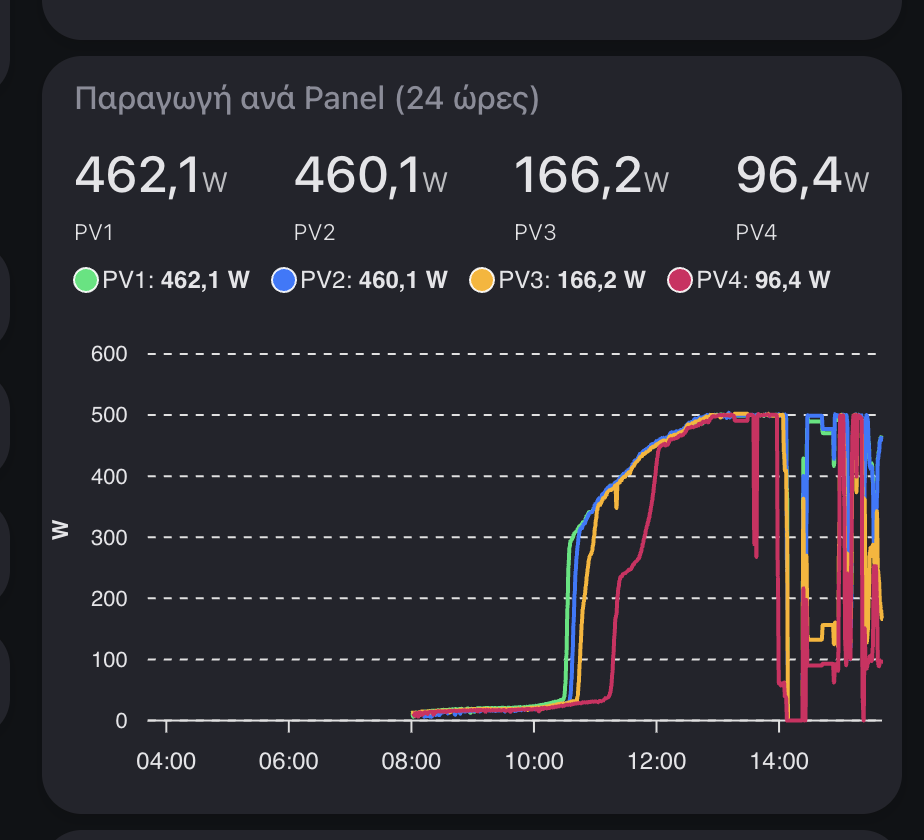

☀️ PV: 1.2kW ← throttled from 2kW, 800W curtailed

How a Typical Day Unfolds

#

Solar doesn’t jump to 2000W at 10:00 — it ramps up through the day. The DC surplus to the Ultra is Solar - 1200W (inverter). At 10:00 when the EV starts, solar may only be ~1200W, meaning the inverter takes all of it and the Ultra gets 0W surplus. The full 800W surplus only appears when solar reaches peak ~2000W.

The critical factor: season. In summer, solar peaks earlier and harder — the Ultra fills fast and curtailment lasts hours. In spring, it fills later and curtailment is shorter.

Spring Day (March, ~13.2 kWh total solar)

#

Spring curtailment: ~1.2 kWh/day. AC Pro never reaches 100%.

Summer Day (June-July, ~15.4 kWh total solar)

#

Summer curtailment: ~3.3 kWh/day over 4.6 hours. AC Pro catches up by 17:20.

Yearly Impact

#

On a typical sunny day — and Greece averages 250+ sunny days per year — the system wastes roughly 3 kWh of solar production. That adds up:

• ~3 kWh/day × 30 days = ~90 kWh/month
• ~90 kWh × 12 months = ~1,080 kWh/year
• At the Greek electricity rate of €0.15/kWh: ~€160/year in lost self-consumption

Over the system’s expected 10-year lifespan, that’s ~10,800 kWh and ~€1,600 of solar energy produced by your panels but thrown away because the architecture can’t deliver it to the expansion battery you paid for.

And that’s just the direct energy loss. The Ultra also accumulates 2-3x more charge cycles than the AC Pro, accelerating degradation on the more expensive unit — the one with the inverter and MPPT that you can’t replace with a €849 AC Pro.

It Gets Worse With More Units

#

EcoFlow markets “expandable to 11.52 kWh” (6 units) and “expandable to 23 kWh” (Ultra X, 6 units). Same 1200W bottleneck:

With 6 units, 5 out of 6 batteries get 0W under load. The Ultra fills in ~3.5 hours (surplus ramps from 0W to 800W as solar peaks), then 800W is curtailed while 9.6 kWh of empty storage sits idle. Even with zero load, charging 5 AC Pros through a 1200W inverter at 87% efficiency takes over 9 hours — longer than a winter solar day in Greece.

Not Just Stream — Same Problem Across EcoFlow Products

#

• Delta Pro + Extra Battery (DIY Solar Forum): Delta Pro at 1.5% while extras at 20% and 60%. EcoFlow: “Differences < 20% are normal.”
• Stream Ultra + AC Pro (VanTour review): AC Pro stuck at 0%, never charged — completely ignored by the system.
• PowerStream (MakeUseOf): Solar curtailed when battery full, no redirect to expansion.

EcoFlow patented a parallel battery equalization solution in 2017 (PWM duty-cycle controlled current distribution). The patent was abandoned and never implemented.

The BMS: Each Unit Is an Island

#

Each unit runs a TI BQ76952 battery monitor (source: iFixit) with a GD32F10x MCU. The BQ76952 monitors only its own 16S cell string — it has zero awareness of other packs. No inter-chip communication, passive-only cell balancing (50-200mA within the pack), and SoC estimation left entirely to the MCU. Inter-unit communication is WiFi only — no CAN bus, no shared voltage bus.

This is normal for battery systems. What’s not normal is the firmware doing nothing with the data it has.

Best Firmware Workaround: “AC Pro First”

#

The 1200W bottleneck can’t be fixed with firmware, but its impact can be reduced.

Charge the AC Pro first during morning low-load hours, then fall back to Ultra when load kicks in. The Ultra starts the load period at ~15% instead of ~35%, needing ~1.63 kWh instead of ~1.25 kWh to fill — pushing the point of curtailment later into the afternoon when solar is already declining.

This is a workaround, not a solution. The 800W hardware tax remains. But it’s the best achievable outcome with current hardware.

What EcoFlow Should Do

#

1. Implement “AC Pro First” charging priority during low-load periods — simple firmware change, no hardware needed
2. Add a Battery Priority setting — let users choose: AC Pro First / Ultra First / Balanced
3. Be transparent about the 1200W bottleneck — “automatically transfers between batteries” is misleading when any load > 1200W blocks all transfer
4. Address the scaling claims — marketing “expandable to 11.52 kWh” without disclosing that expansion batteries can’t charge under load is a material omission

How to Reproduce

#

1. Start both batteries at similar SOC (~15%)
2. Let them charge from solar under low load — they’ll track together
3. Turn on any sustained load > 500W
4. Watch Ultra SOC climb while AC Pro stalls
5. Wait for Ultra to hit 100% — observe PV drop from ~2000W to ~1200W

sensor.stream_ultra_*_power_battery_soc    # Ultra SOC
sensor.stream_ac_pro_power_battery_soc      # AC Pro SOC
sensor.stream_ultra_*_power_pv_sum          # Total PV production

Update: EcoFlow Support Confirms the Limitation

#

April 3, 2026 — After reporting this issue to EcoFlow EU Support with full diagnostic data, screenshots, and a link to this article, I received the following response:

“You currently have 1.87kW of solar input and 1.81kW of load. Since the Stream Ultra’s inverter capacity is limited to 1200W, your 1.87kW solar input is being inverted to provide 1200W of power to your load. Currently, the Stream Ultra’s 1200W inverter capacity is fully utilized. Therefore, after 1870W minus 1200W, the remaining solar power cannot directly charge the Stream AC Pro, but can only charge the Stream Ultra.”

— EcoFlow EU Customer Service, April 3, 2026

EcoFlow has officially confirmed that the AC Pro cannot charge from solar when the household load exceeds the 1200W inverter capacity. This is not a bug, not a misconfiguration, and not something a firmware update can resolve. It is the system working as designed — a design that directly contradicts the marketed claims of “surplus solar energy automatically transfers between batteries.”

The question I’ve put back to EcoFlow: if this is how the architecture works, how can you advertise “AI-driven load balancing that automatically redirects energy” between units? And how does the “expandable to 11.52 kWh” claim hold up when expansion batteries can’t charge under any normal household load?

I have requested either a replacement with a single EcoFlow STREAM Ultra X (3.84 kWh, same total capacity, no inter-unit bottleneck) or a full refund, under EU Directive 2019/771 — which requires goods to conform to the seller’s public advertising.

I will update this post as the case progresses.

Support Case Timeline

#

A factual chronology of the support interaction. Dates and counts are accurate; the contents of individual emails remain private out of respect for support staff.

Total: 19+ emails over 25 days, three escalation levels reached (L1 → R&D → After-sales), all three resolution paths requested and none yet actioned.

April 28, 2026 is the deadline I have communicated to EcoFlow for a substantive response. If no resolution is offered by that date, the case proceeds to the Hellenic Consumer Ombudsman, ECC-Greece, and the EU ODR platform — all within my rights under EU Directive 2019/771.

I am not asking for compensation beyond what the directive already entitles any EU consumer to: a product that conforms to the seller’s public advertising, or a remedy (repair, replacement, price reduction, or refund) if it does not.

Call to Action

#

If you observe this behavior:

1. Report to EcoFlow support — reference: “Under load > 1200W, AC Pro receives 0W from solar due to inverter bottleneck”. EcoFlow has confirmed this is how the system works.
2. Post data in the EcoFlow community forum
3. Reference EU Directive 2019/771 if you purchased the AC Pro based on the “automatic energy transfer” claims — goods must conform to the seller’s advertising
4. Consider the Stream Ultra X (3.84 kWh single unit) instead — it eliminates the inter-unit bottleneck

Updated April 3, 2026: EcoFlow support officially confirmed the 1200W inverter bottleneck as the cause. Replacement/refund requested under EU Directive 2019/771. Updated April 1, 2026: Added root cause architecture analysis, scaling analysis, community reports, BMS details, and “AC Pro First” workaround. Original post: March 30, 2026.

PV surplus automation: PV Surplus EV Charging — The Zero-Export Adventure. If you found this useful, share it — visibility drives fixes.
